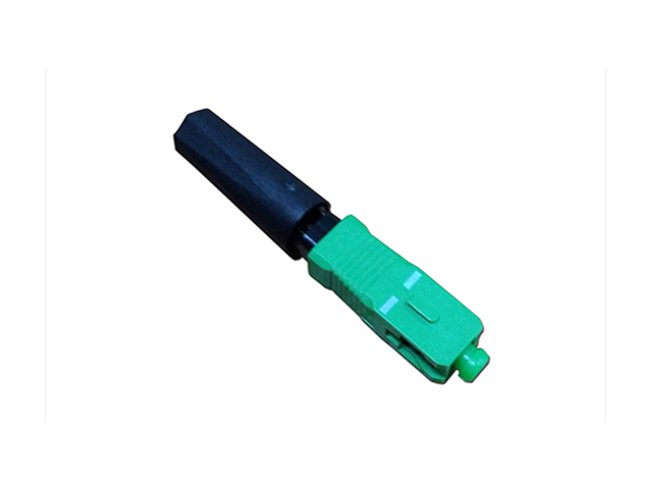

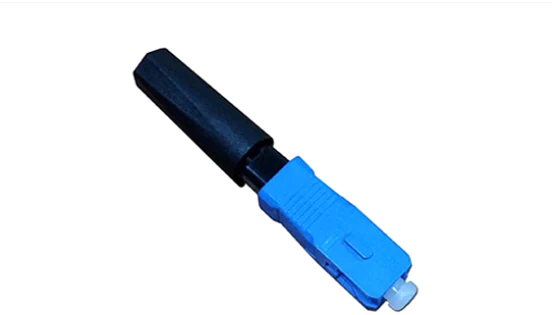

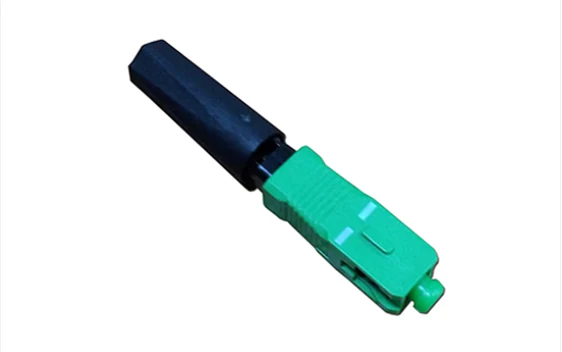

SC Fast Fiber Optic Connector
Field-installable SC connector for quick fiber termination in LAN, CCTV and FTTH wiring.
Specifications
| Product | SC fast fiber optic connector |
|---|---|
| Insertion loss | ≤ 0.3 dB |
| Return loss | ≥ 50 dB (UPC); ≥ 60 dB (APC) |
| Cable diameter | 2.0 mm, 3.0 mm, 3.1 x 2.0 mm drop cable |
| Features | Low insertion loss; high return loss; good repeatability and stability; good temperature stability; excellent mechanical endurance |
| Applications | Optical fiber communication systems; fiber access network; fiber optic data transmission; FTTH, CATV, LAN, etc. |
Description
An optical fiber connector terminates the end of an optical fiber and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. The fast connector is already a popular solution for optical wiring inside buildings and floors for LAN, CCTV and FTTH applications. Using this fast connector improves the flexibility of optical wiring design and reduces the time required for fiber termination.
