IP68 Dome Fiber Optic Splice Closure
SKU: CV027
Large dome type fiber optic splice closure for up to 288 fibers, IP68 rated.
Specifications
| Model | CV027 |
|---|---|
| Dimensions | Φ304.2 x 502 mm |
| Material | PP plastic |
| Max. capacity | 288 fibers |
| Max. splice trays | 24 pcs (OST-063) |
| Max. capacity per splice tray | 12 fibers |
| Cable ports | 4 round ports Φ18 mm; 4 round ports Φ20 mm; 8 round ports Φ26 mm; 1 oval port supporting cable entry without cutting |
| Sealing | Heat-shrinkable sealing structure |
| IP rating | IP68 |
| Application | Outdoor aerial hanging, pole-mounted, wall-mounted, direct buried, duct |
| Operating temperature | -35°C to 70°C |
Description

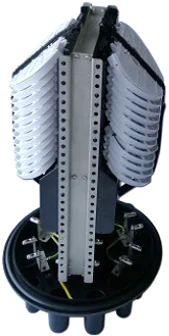

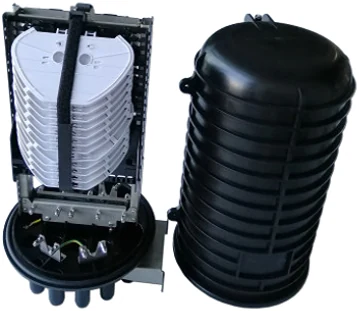

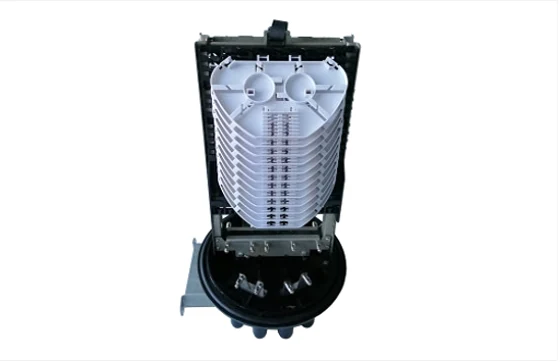

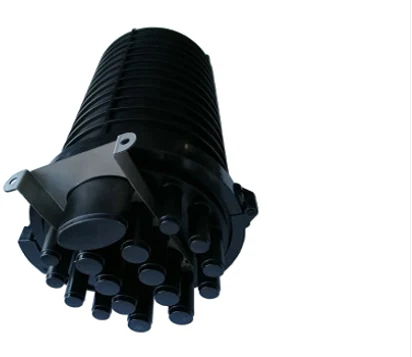

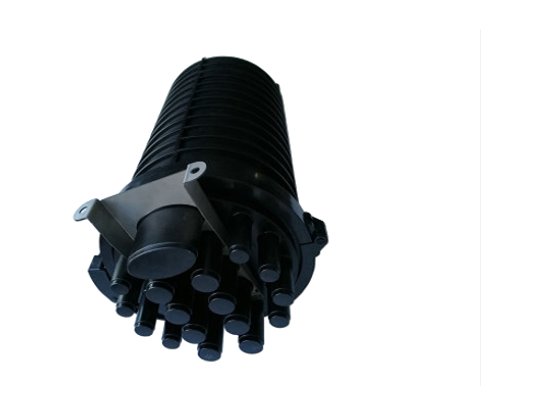

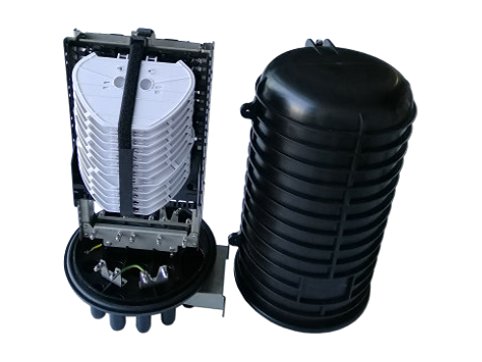

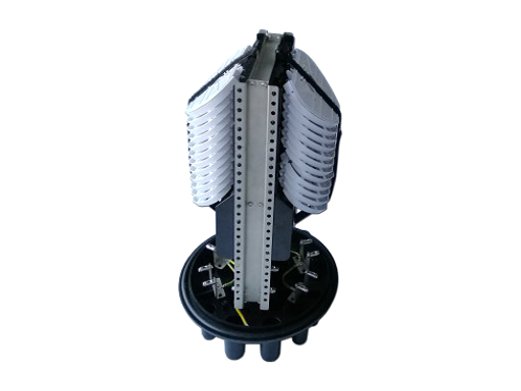

CV027 is a large dome type fiber optic splice closure. It has 1 oval cable port that supports cable entry without cutting, and 16 round cable ports for cable entry and exit. It includes 24 pcs of OST-063 fiber optic splice trays for splicing and junction of up to 288 fibers. The closure can be used in environments from -35°C to 70°C, and is cold and heat resistant, electrically insulating, and resistant to chemical corrosion.
