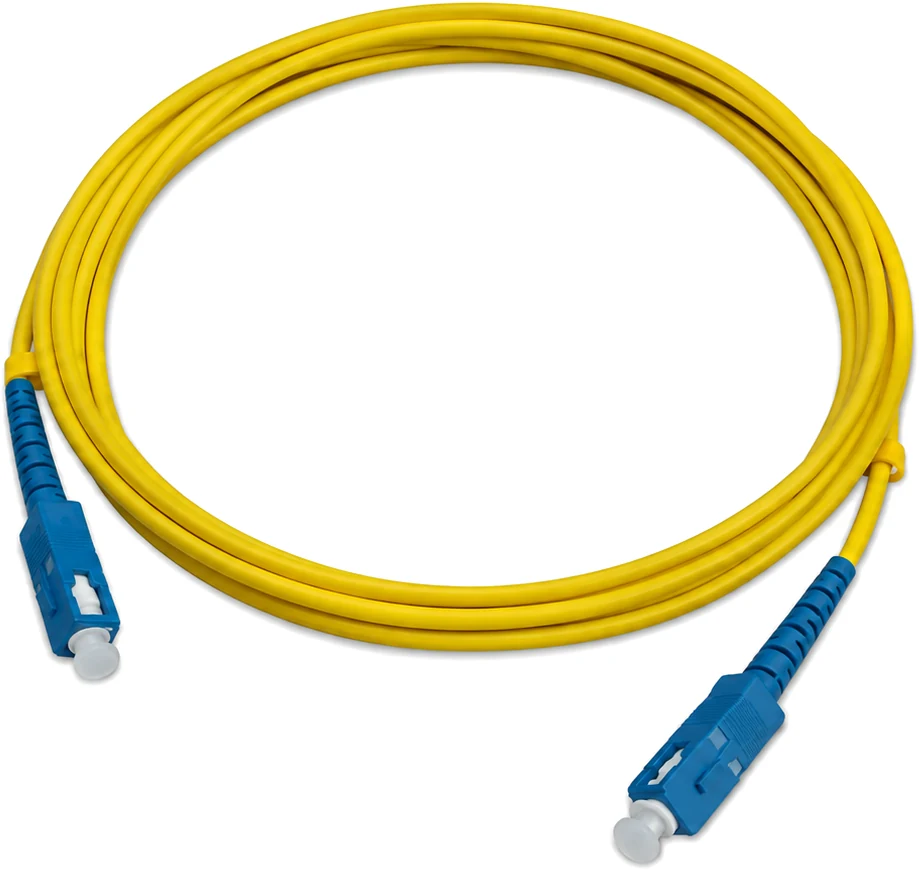

SC/UPC Fiber Optic Patch Cord
Simplex SC/UPC patch cord with low insertion loss and high return loss.
Specifications
| Product | SC/UPC fiber optic patch cord |
|---|---|
| Insertion loss | ≤ 0.2 dB |
| Return loss | ≥ 50 dB |
| Connector type | SC |
| Polishing type | UPC |
| Fiber type | G.652D, G.657A |
| Fiber quantity | Simplex |
| Cable diameter | 2.0 mm, 3.0 mm |
| Cable length | 1, 2, 3 ... meters, as per request |
| Cable jacket | PVC or LSZH |
| Cable color | Yellow |
| Features | Low insertion loss; high return loss; good repeatability and stability; good temperature stability; excellent mechanical endurance |
| Applications | Optical fiber communication systems; fiber access network; fiber optic data transmission; CATV, LAN; test equipment, etc. |
Description
A fiber optic patch cord is a fiber optic cable assembled with connectors at both ends, allowing it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. It is used to attach one device to another for signal routing.
